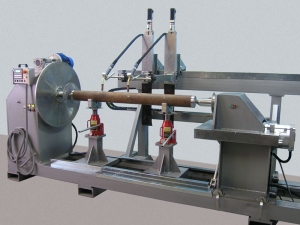

Machine AS354-2 for surfacing of cylindrical and conical surfaces by two separate torches

AS354-2 consists of:

- frame;
- mechanism of the linear movement of the torch (X), 2 pcs.;
- mechanism of the linear movement of the torch (Z), 2 pcs.;
- rotator of product;
- movable clamp of a product;
- movable support of a product, 2 pcs.;

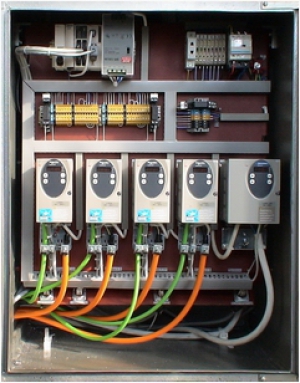

- control system;
- operating console;
- set of welding equipment, 2 pcs.;
- pneumoapparatus etc.

AS354-2 peculiarities:

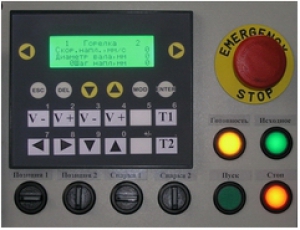

- A compact operating console;
- Contouring control of the movement of the torch along a linear path (forming a cylindrical or conical surfaces) with the required linear velocity of the tool and the circumferential speed of the detail, and parameters of torch oscillating;
- The programming of the pathes "point to point", ie. the movement of the torch with a portable remote control at the beginning and end of the weld area, and automatic recording of the coordinates of these points in the controllers memory;
- A forming of 2 x 9 couples of coordinates for surfacing;
- A forming of 2 x 9 modes of a surfacing;
- Simultaneous control of 4 servo torch drivers and rotary drive of the product;
- A smooth control of welding parameters;
- A "hot" editing of parameters (speed, step,amplitude and period of oscillation, delay the torch at the extremes of the oscillation);
- A quick machine readjustment for welding of details with different sizes.
